محصول جدید
66,680,000 ریال

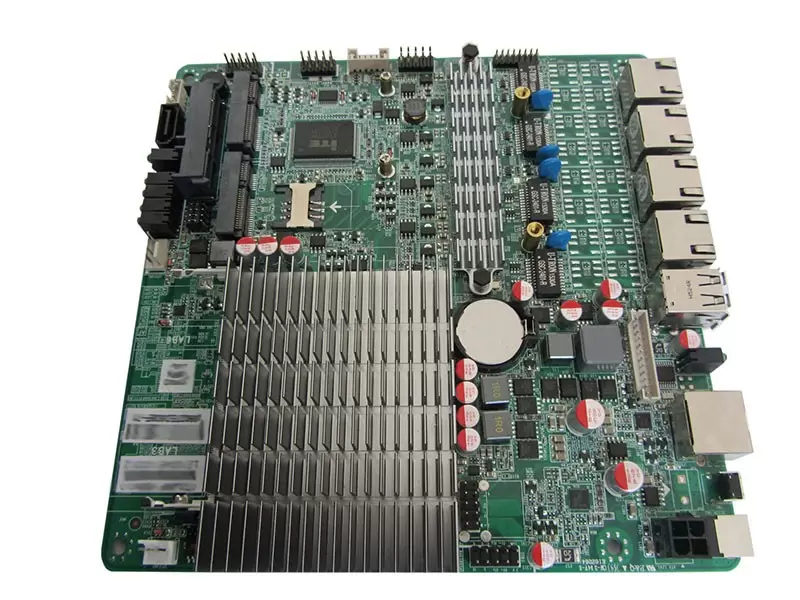

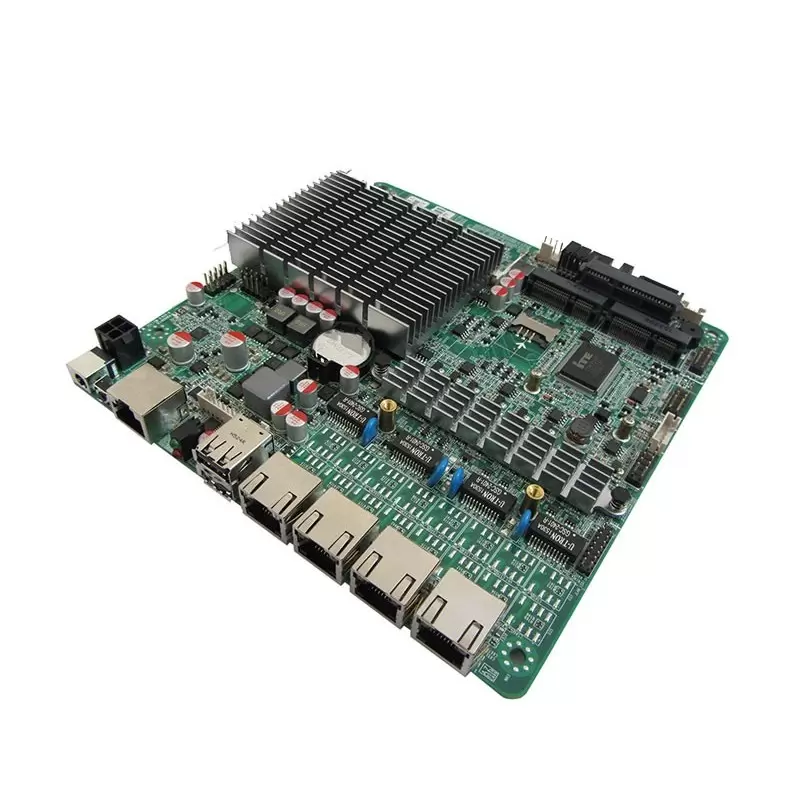

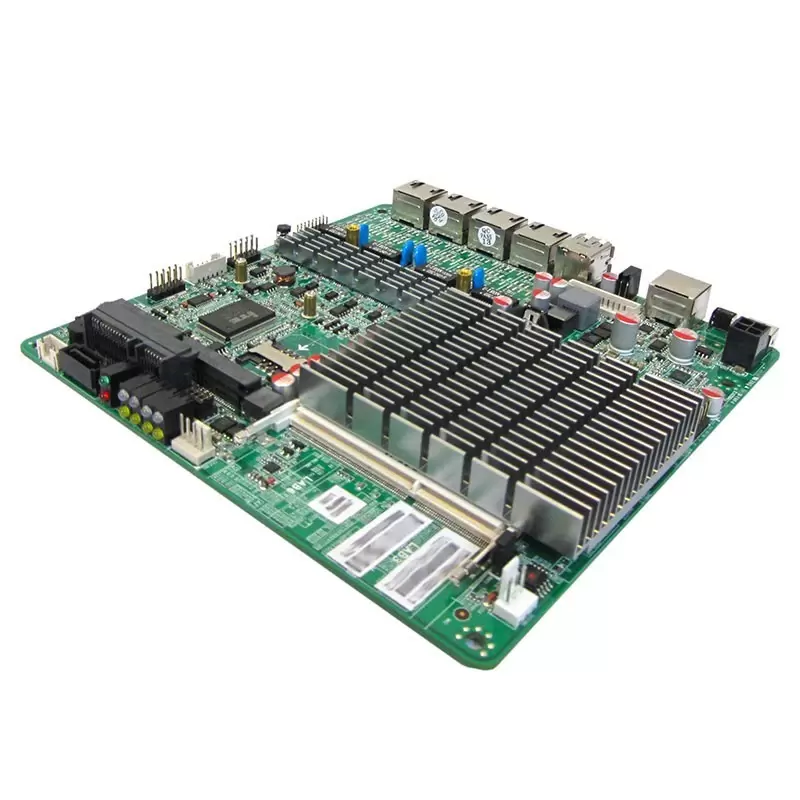

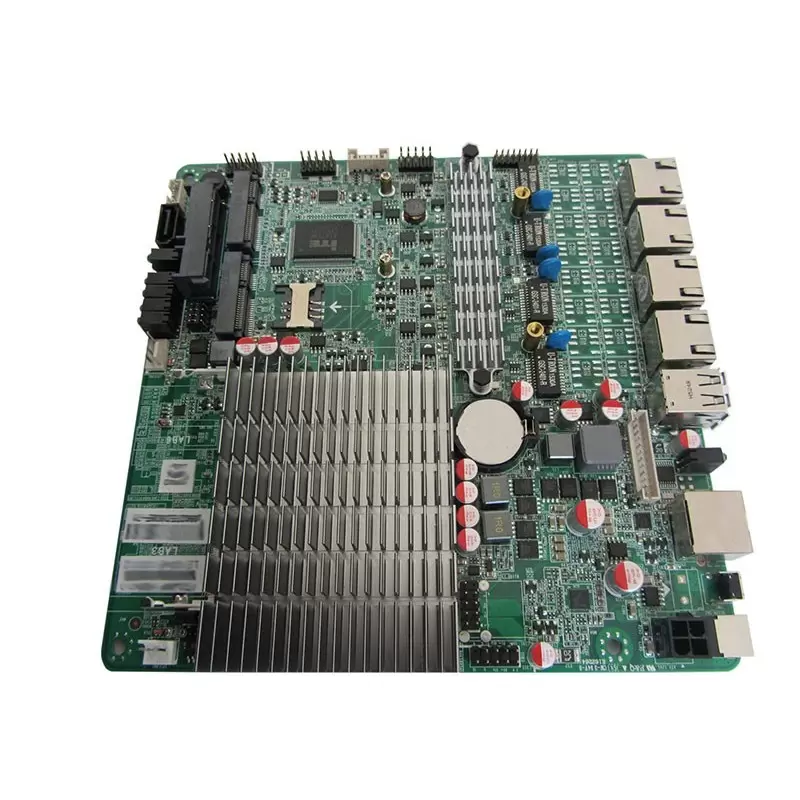

مادر برد صنعتی مولتی لن چهار هسته ای بدون فن - محصولی از کویر کامپیوتر
نظر و رتبه بندی مشتریان
مادر برد صنعتی کویر کامپیوتر با 4پورت لن 1 گیگ مدل kc5006
قابلیت اتصال مستقیم هارد 2.5 اینچ ساتا
قابلیت اتصال سیم کارت
این مادر برد بدون رم و هارد می باشد و قابلیت کانفیگ با انواع رم و هارد HDD و SSD دارد
CPU Integrated Intel® J1900 quad-core 22nm processors 2.0GHz, compatible with Intel® Bay Trail -I / M / D full range of CPU
chipset Based on Intel® Bay trail SOC platform, CPU integrated
RAM 1 * DDR3 SODIMM, support 1333/1066 memory, up to 8GB
Display Function Integrated Intel® HD Graphics graphics core
Expansion slots 1 * MSATA slot
1 * Mini-PCIE slot (support WIFI, 3G module)
Network capabilities Integrated four Intel 82583V Gigabit LAN chip, supports Wake on LAN

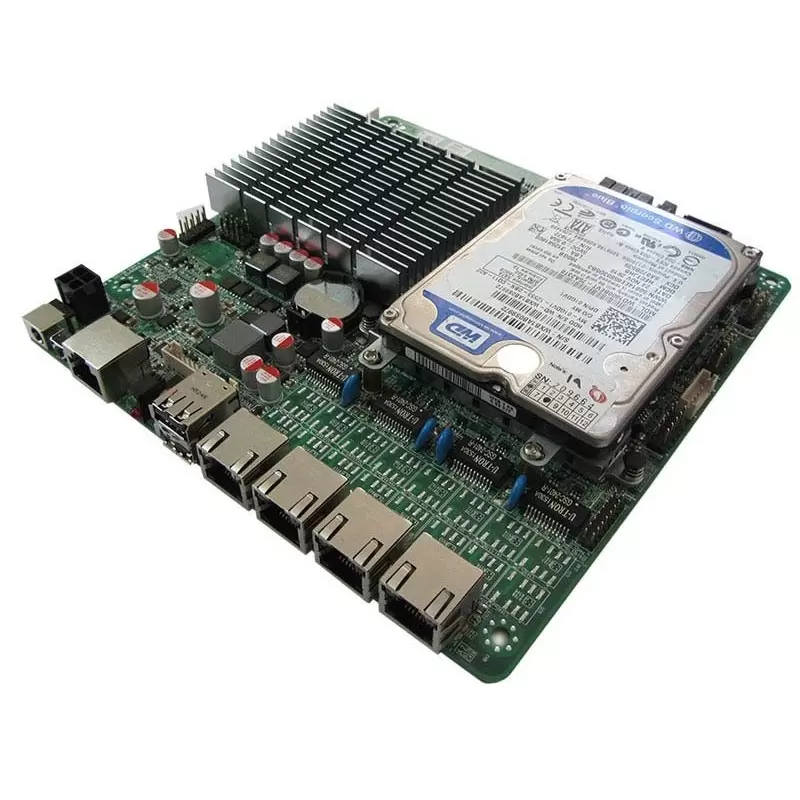

Memory function 1 * 2.5-inch notebook hard drives, hard drives can be installed directly
1 * SATA hard disk interface (with the 2.5-inch hard drive check one)
1 * MSATA slot (supports SSD hard drive)

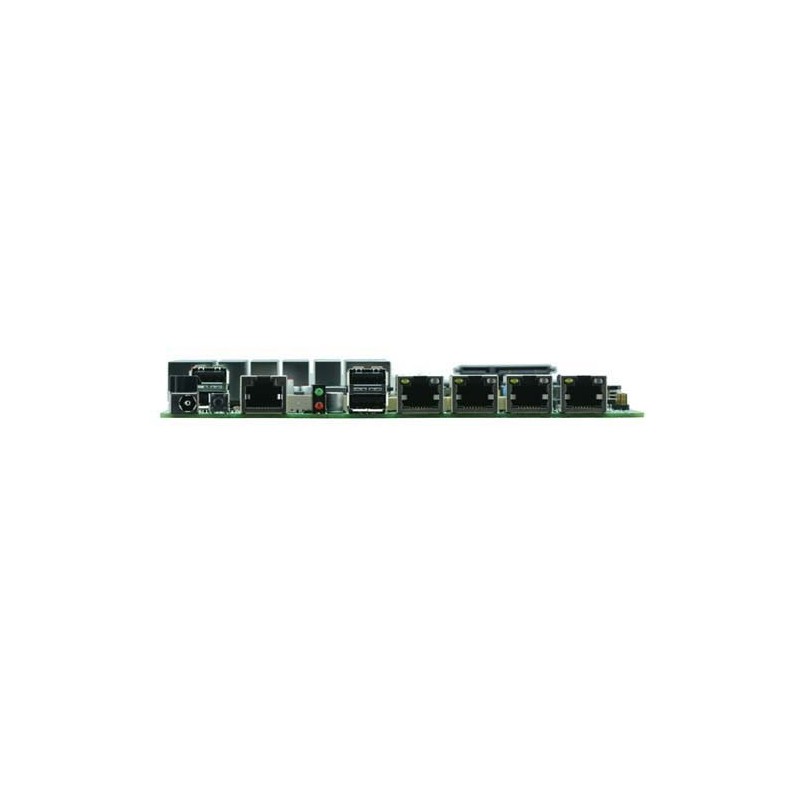

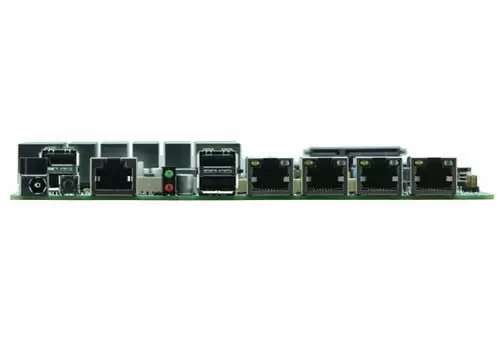

Backplane I / O interface 1 * 12V ~ 19V DC JACK input
1 * Power Switch
1 * COM CISCO standard interfaces
1 * LED1 (POWER LED / HDD LED)
2 * USB interface (the interface supports USB2.0, the interface supports USB3.0)
4 * RJ-45 network interface(1Gbit)
Built-in I / O Interface 1 * VGA pin (1 * 12pin)
1 * LAN LED pins (2 * 8pin)
1 * COM pin
4 * USB 2.0 pin
1 * FP1 pins (2 * 5pin front panel function buttons and LEDs Interface)
1 * ATX 4PIN Power Interface (do 12V ~ 19V input-output power supply)
1 * keyboard and mouse pin
1 * hard drive power connector
1 * SIM card holder
Fan Interface 1 * CPU fan, system fan connector 1 *
GPIO It supports 4-way input and output interfaces
BIOS AMI 32Mb Flash ROM
Watchdog Support for hardware reset function (256, 0 to 255 seconds)
Power supply type Single power supply DC12V
Operating temperature -10 ℃ ~ 60 ℃
Storage temperature -20 ℃ ~ 70 ℃
Working humidity 5-95% relative humidity, non-condensing
size 170mm x 170mm
سری پردازنده | Celeron |
پردازنده | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) |
حافظه کش | 2 مگ |
حافظه RAM | بدون رم ساپورت حداکثر 8 گیگ |
حافظه داخلی | بدون هارد ساپورت mSata/SSD/H.D.D |
پردازنده گرافیکی | Intel® HD Graphics 688.00 MHz |
شبکه بیسیم ( Wi-Fi ) | اختیاری Wifi 2.4G/5.0G |
بلوتوث | اختیاری |
پورت شبکه ( LAN ) | 10/100/1000Mb |
خروجی تصویر | VGA |
پورت های جانبی | پورت ها 1xCOM 5xUSB2.0 1xUSB3.0 1xGPIO |
سیستم عامل | win7-8-10-لینوکس |
توضیحات اضافی | این مادربرد قابلیت نصب مستقیم هارد لپ تابی روی خودش را دارد و ساپورت انواع هارد SSD و همچنین داری 4 پورت لن 1G می باشد |
