مینی باکس اداری رومیزی خانگی Core i7-8750H DDR4 دارای فن مدل KC5108

مینی کامپیوتر اداری، رومیزی، خانگی دارای فن  CORE I7-8750H -KC5108

توجه: این مینی باکس حرفه ای بدون رم، هارد و کارت وای فای می باشد.

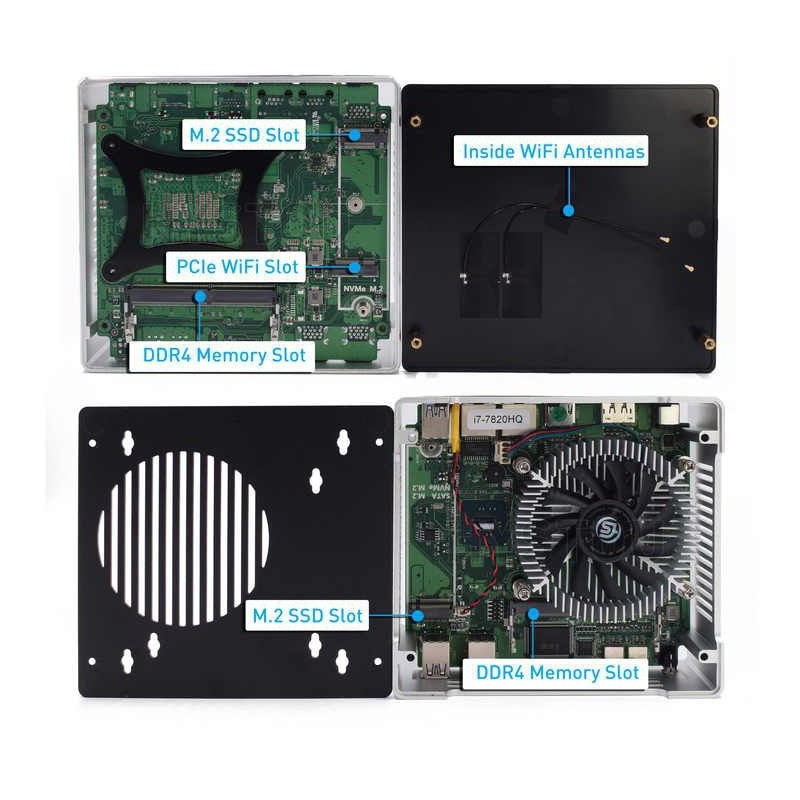

از مزیت های این باکس  6 عدد usb3 و 2 پورت لن می باشد. این مینی پی سی دارای دواسلات رم pc4 و دو اسلات هارد NVMe M.2 می باشد.

سایز این باکس  65*137*150 سانتیمتر

این محصول همراه با آداپتور 19 ولت هست.

CPU Intel Core i7 8750H 6 cores 12 threads 2.2GHz up to 4.10GHz 6MB cache TDP 45W HD Graphics 630.
- Smart tiny case 137x150x65mm hold by a hand, powerful processor 8th Gen stronger performance.

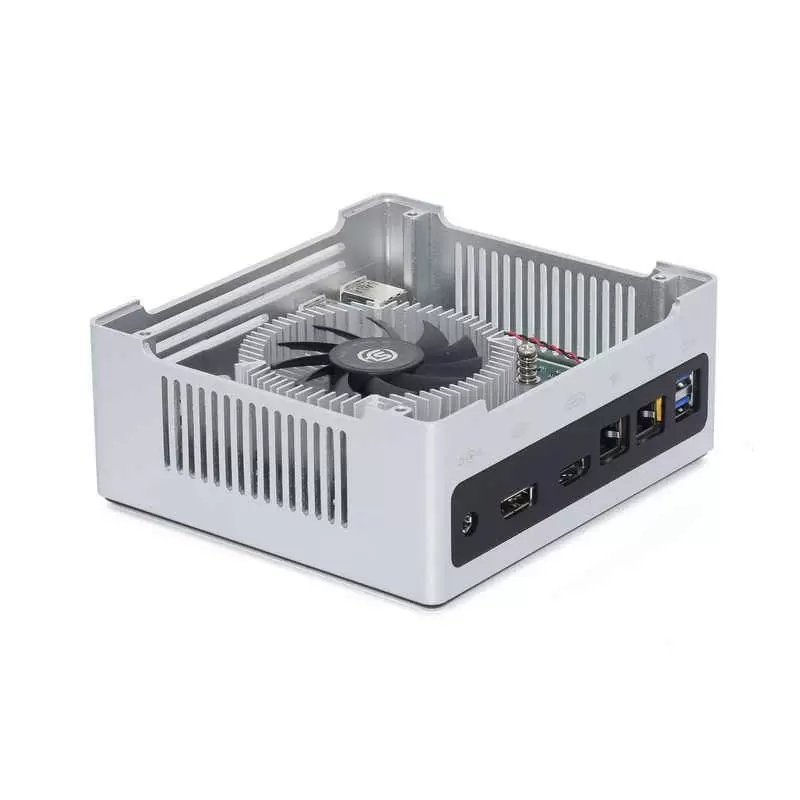

- Onboard a copper fan for heat dissipation can keep the computer steady working long time.
- All aluminum alloy case, Good heat dissipation can keep the computer steady working 7*24 hours.
- Low power consumption only 15W, energy-saving up to 90% compare to traditional desktop computers
- 2xSODIMM DDR4 memory slot up to 64GB more fast speed improve work efficiency and give you a smooth experience.
- 2*M.2 2280 NV-ME/PCIe/SATA SSD up to 32Gbps.
- 2*Lans, One Intel Gigabit Ethernet and one Realtek Gigabit Ethernet.

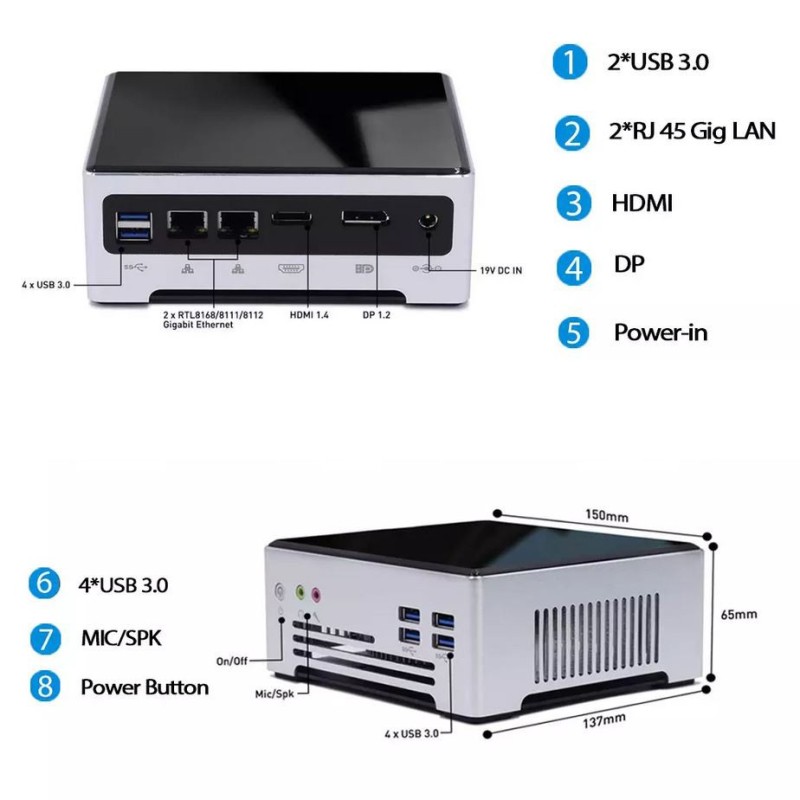

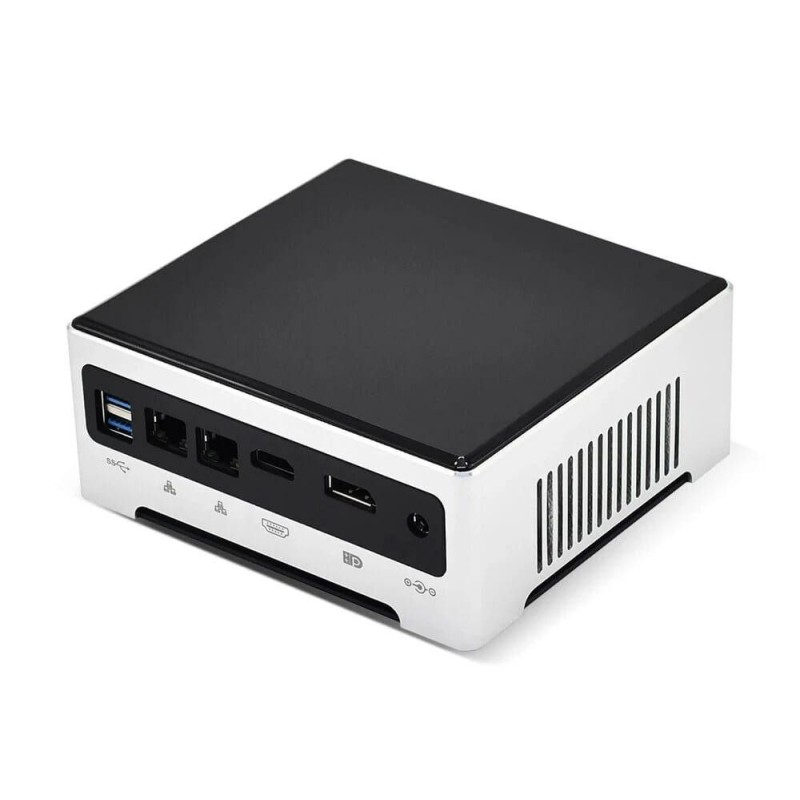

- Rich interfaces with USB, DP, HD-MI, 2*LAN, etc to connect with more devices.
- Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
- Support WOL, wake on power,PXE

Basic Information
CPU
    Onboard In-tel Core i7 8750H
    8th Generation Intel® Core™ i7 Processors
TDP
    45W
Memory
    2 x SO-DIMM DDR4 Slot
    Support 4GB/8GB/16GB/32GB
    DDR4-2133/2400
OS
    Win 10/Linux
PXE
    YES
Audio
    In-tel High Definition Audio Controller
Network
    1 x Onboard In-tel Ethernet Connection I219-LM
    1 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
    10/100Mbps/1000Mbps BaseT LAN
Video
    Intel® UHD Graphics 630

Input/output port
Switch
    1 x Power On/Off Switch
Power
    1 x Power In
USB

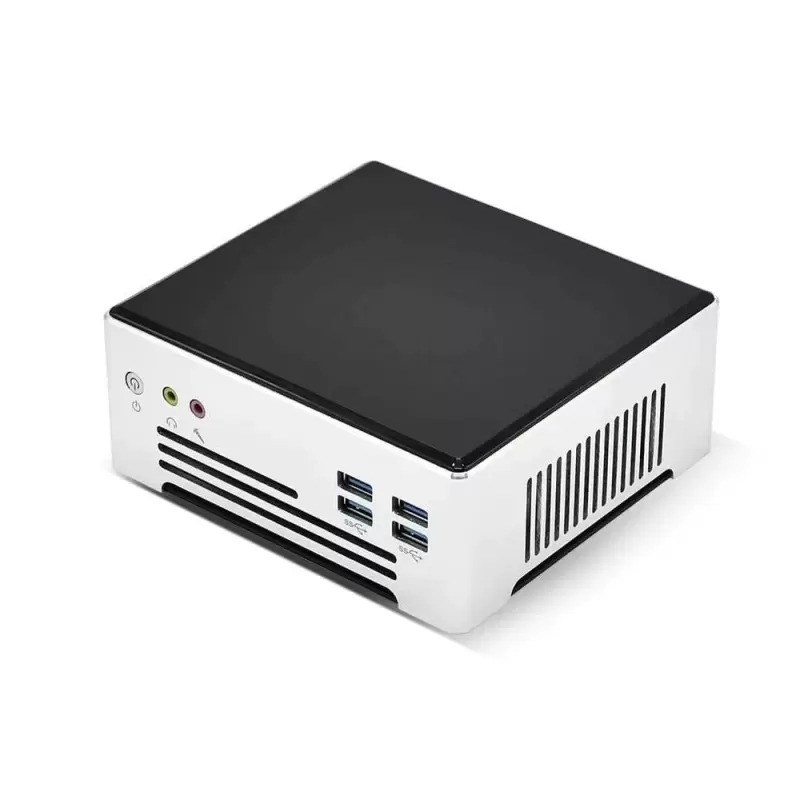

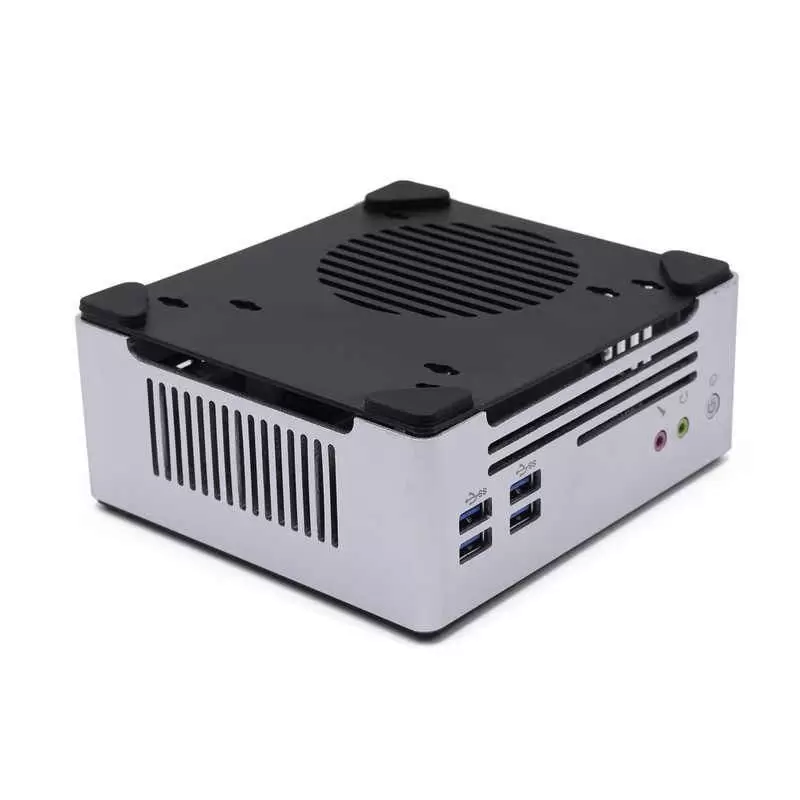

    6x USB3.0
Display

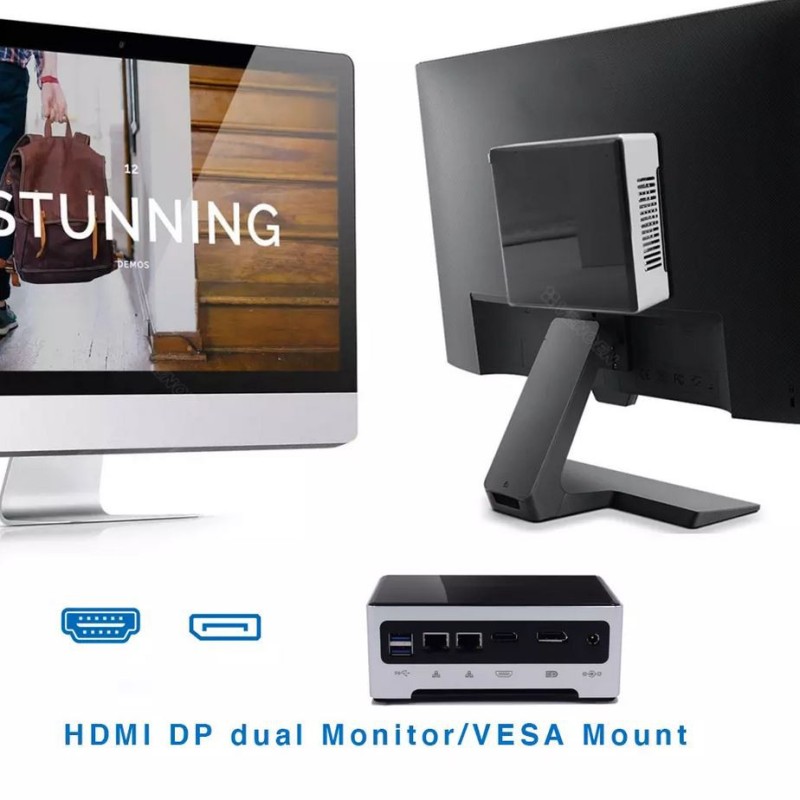

    1 x DP, 1 x HD-MI 1.4 (support 4K HD dual display)
LAN
    2 x RJ45 Giga LAN
Audio
    1 x MIC, 1 x SPK
Storage
    M.2

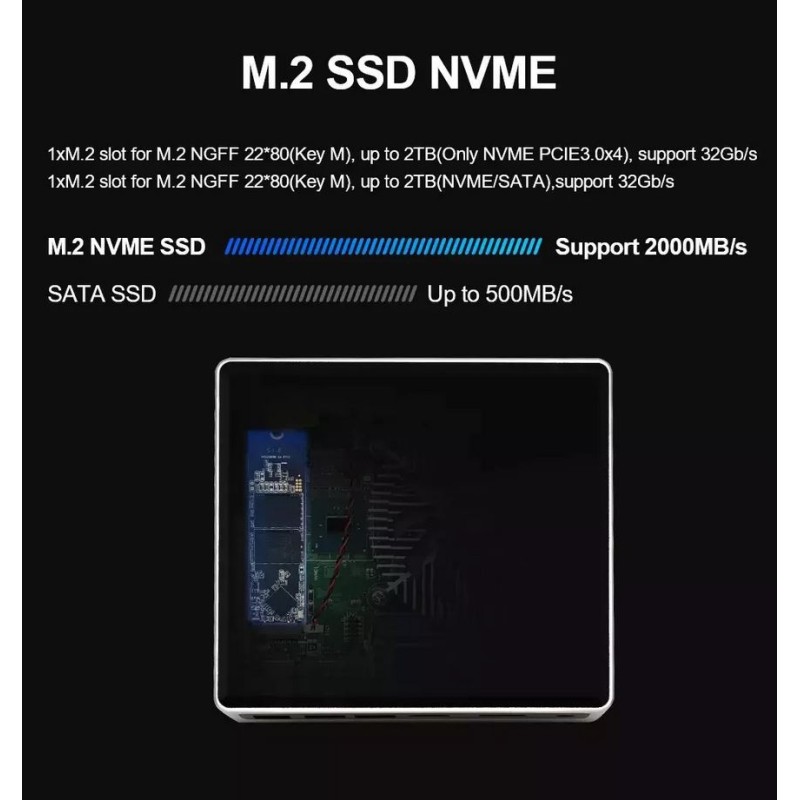

    2x M.2 slot for NGFF/NV-ME/PCIe SSD 32Gb/s
SATA
    NO
Wi-Fi
    Module
    1 x PCIe slot for Wi-Fi module
Antenna
    2 x inner RF cables and without external antenna

Power and Working Environment
Input
    DC100-240V AC/50-60Hz
Output
    DC +12V~+19V

Operating Temperature
    0/70 Centigrade
Relative Humidity
    10%~85%

Product Dimension & Details
Size
    137*150*65mm
Shell
    PVP top and aluminum alloy body
Cooling Mode

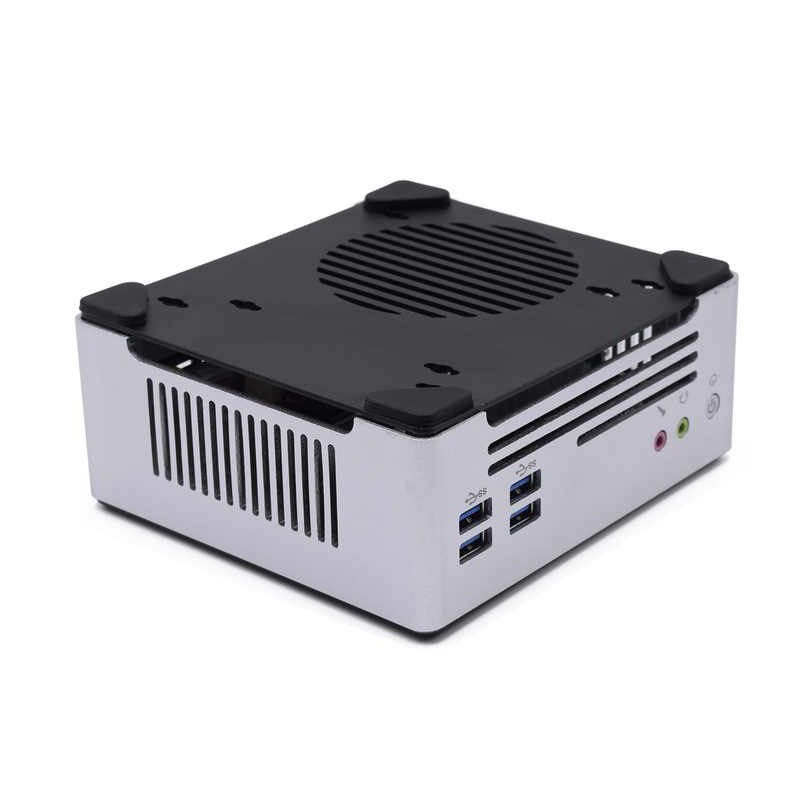

    With a copper cooling fan
Functions
    AWAL, PXE, Wake On LAN, RTC
Package Content
    Standard
    1xMini PC, 1xPower Adapter
